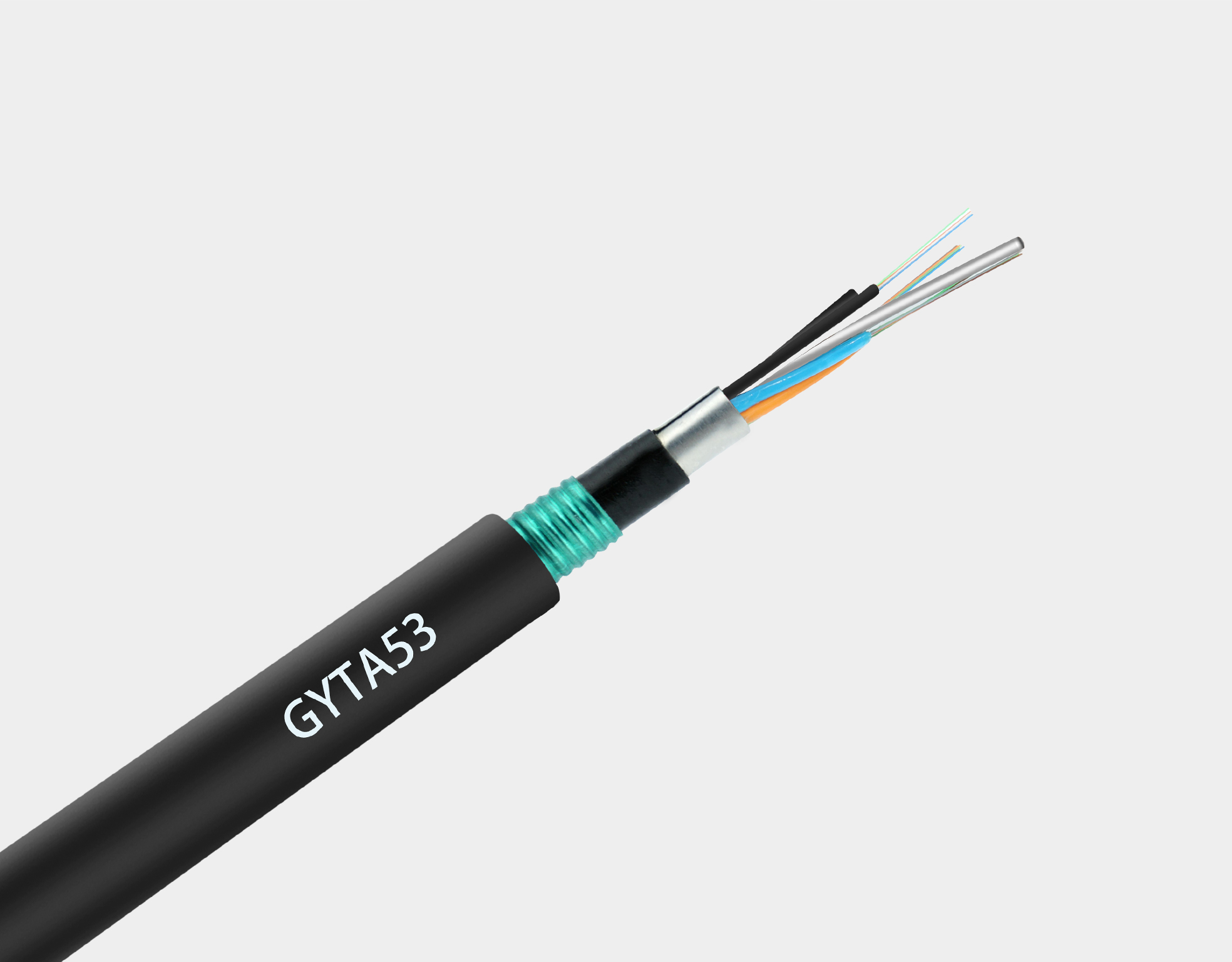

Single Mode GYTA53 Tight Buffer Fiber Optic Cable
The GYTA53 cable offers strong connections. You get fast data transfer, reaching speeds of up to 100 Gbps. This features a double jacket design, enhancing mechanical durability. The loose tube structure, with a diameter of 2.0mm, holds optical fibers. A 1.6mm diameter steel-wire central strength member gives support. Polyethylene (PE) forms the 1.5mm thick inner sheath.
0.2mm thick Aluminum tape adds a moisture barrier. The outer sheath, of medium-density polyethylene, provides extra guarding, with a thickness of 2.0mm. This cable uses up to 288 fibers for high capacity.
It withstands over 1500N of tensile force. The crush resistance measures 3000N/10cm. Operating temperatures range from -40°C to +60°C. You get a bending radius of 20D, (where D= cable diameter). Fiber counts are from 2 to 288 fibers.
- Fast speeds available.
- Long cable runs.
- Secure networks work.
What GYTA53 Does?
The versatile gyta53 fiber optic cable uses advanced technology. GYTA53 transmits light signals for communication. You can send lots of data quickly, with low latency. The central loose tube protects the fibers. Phosphatized steel wire offers tensile strength, exceeding 800 MPa.
Water-blocking compound fills any empty space. The cable’s core has a filling compound. This prevents water from causing any damage, maintaining signal integrity. Corrugated steel tape armor adds strength, with a thickness of 0.15mm. A 2mm thick PE jacket resists impacts.
Maximum fiber density is 12 fibers per PBT tube. Cable diameter varies around 14.5 mm. Attenuation is nearly 0.22 dB/km at the 1550nm wavelength. Chromatic dispersion measures 18 ps/(nm·km). Zero dispersion wavelength is around 1310nm.
GYTA53 Fiber Optic Cable Specifications
- Thông số kỹ thuật
| Đặc điểm kỹ thuật | Ống lỏng trung tâm | Ống lỏng bị mắc kẹt | Lớp kép | Armoring Type | Loại sợi | Chất liệu áo khoác |
| Số lượng chất xơ | 2-144 sợi | Up to 288 Fibers | Up to 432 Fibers | Corrugated Steel Tape | G.652D, G.657A1 | MDPE, HDPE |
| Độ bền kéo | 1000N | 2700N | 3000N | Double Layered | Single Mode | Chống tia UV |
| Sức chịu lực nghiền | 2200N/10cm | 3000N/10cm | 4400N/10cm | 0.15mm Thickness | Low Water Peak | Black PE |
| Nhiệt độ hoạt động | -40°C to +60°C | -40°C đến +70°C | -40°C đến +70°C | Helically Applied | Bend Insensitive | 2.0mm Thickness |
| Bán kính uốn cong | 20 ngày | 15D-20D | 25 D | Longitudinal Steel | 9/125µm | LSZH Optional |
| Chặn nước | Jelly Filled | Water Swelling Yarn | Dry Core Design | Fully Filled | 288f/tube | Anti-Rodent |
| Cable Diameter | 8-15mm | 12- 20mm | 14-23mm | Steel Wires | ITU-T G.65x | Thixotropic Jelly Compound |
Where You Might Find GYTA53 Cable Working?
Linking Big Cities
GYTA53 connects cities across great distances. Find the cable ensuring high-speed data exchange, supporting multiple terabits per second. Fiber optic cores handle vast network traffic. Applications include inter-city communication, and backbone network. The cable uses G.652D single-mode fiber.
It features 9/125µm core/cladding diameter. Metal strength part increases durability. The cable’s outer diameter is around 15mm. Filling material is thixotropic jelly, with a density of 0.95 g/cm³. It weighs about 210 kg/km.
Underground Pathways
Installing GYTA53 underground protects from the damage. Ducts, with diameters exceeding 50mm, provide housing, simplifying future maintenance. The cable is appropriate for direct burial applications. Features aramid yarn for increased tensile strength, exceeding 1000N.
It uses a double-layer polyethylene (PE) sheath. The inner sheath measure is1.5 mm. Outer sheath measures 2.0 mm. The cable includes 12 color-coded fibers, according to the TIA/EIA-598-C standard. Minimum bending radius is 200 mm.
Helping Businesses
Businesses choose GYTA53 for high-speed data transfer. The cable gives a strong, reliable connection. It handles many high-bandwidth applications in corporate settings. Find it supporting video conferencing, and cloud computing, with minimal packet loss. Its design allows for up to 432 fibers.
The cable’s water resistance value is IPX8, tested at a depth of 1 meter for 24 hours. Operating temperatures range from -40°C to 70°C. It weighs about 23 kg, per hundred meters.
Rural Areas Connection
The durable gyta53 fiber cable ensures connectivity over long distances. GYTA53 brings networks to remote regions. Now, smaller towns get connectivity benefits, including access to broadband internet. The cable construction ensures long-term operational performance, with a projected lifespan of over 30 years. Installation methods are duct, aerial, and direct burial.
Maximum pulling tension reaches to 2700 N. Features impact resistance value of 25 J. Cable includes a ripcord, made of nylon, for easy access. The outer jacket contains UV protection additives, stabilizing against degradation. The cable diameter is around 15.3mm.
How GYTA53 Keeps Your Connections Extra Safe?
-
GYTA53 uses robust layers for mechanical safety. The corrugated steel armor, with a corrugation depth of 0.5mm, defends against damage. It has superior crush resistance performance.
This construction method enhances protection from external forces. It uses double sheath configuration. Armor thickness reaches 0.2mm. The cable’s tensile strength value is1200N. Central strength uses FRP (Fiber Reinforced Polymer) material. Cable weight is 180 kg/km.
-
The cable design keeps water at distance. Water-blocking materials, including swellable yarns, surround all the core. Dry core structure ensures moisture resistance. Filling compound, with a dropping point above 90°C, stops longitudinal water penetration. The sheath material features a waterproofing agent.
It features aluminum tape for radial moisture protection. The cable’s water penetration is zero, meeting IEC 60794-1-F5 standards. The jelly compound viscosity is5000 cP. The cable diameter is 12mm.
-
Special construction prevents rodent damage. A 0.15mm thick steel tape acts like armor plating. This covering is proven to protect from animals. It’s a reliable rodent-proof solution.
Cable has up to 96 fiber counts. Its diameter varies around 10mm. The sheath incorporates anti-rodent additive, such as denatonium benzoate. Armoring extends over inner jacket. Crush resistance equals 2200N. The cable weighs 165 kg/km.
-
GYTA53 provides long service in many conditions. Its robust design reduces the maintenance needs. Materials offer resistance to corrosion and weather. The cable undergoes rigorous tests, including tensile, crush, and impact tests. Its service life goes over 30 years.
The fiber features low attenuation, less than 0.35 dB/km at 1310nm. Sheath material offers UV resistance properties. Temperature range equals -20°C to +65°C. It has up to 72 fibers.
Tải xuống Danh mục sản phẩm DEKAM
Protecting Your Investment!
GYTA53 is an investment in a durable network. Selecting the network reduces your future operating expenses. Proper maintenance techniques, including regular inspections, help businesses preserve the best possible product quality. The durability feature helps stretch equipment lifespan which reduces the need for replacements and thereby saves money.
The network experiences reduced repair costs. The robust gyta53 optical fiber cable has an extended service life. Due to its long lifespan the cable provides financial gains which lead to reduced expenses. Components with superior quality, lead to dependable service operation.
The number of interruptions that cause damage decreases maintenance costs. The tubes within each cable contain up to twelve fibers. Storage temperature spans from -40°C to +70°C. Installation temperature ranges from -30°C to +60°C. Cable weight is around 205 kg/km. The product shows no water uptake properties, ensuring long-term reliability.
Cáp liên quan khác (4)
GYTA53 connects networks over different areas. You can get use for long-haul applications. It is perfect for direct burial setup. The armor protects from crushing effects. Features up to 144 fibers for high-volume data. Its outer jacket measures 1.8mm. The cable uses G.657 optical fiber, bend-insensitive.
This durable cable will usually operate beyond 25 years. Proper handling extends its lifespan. The life depends on surrounding, environmental issues. Fiber material guarantees long-distance communication use. The cable structure features up to 24 fiber tubes. Cable diameter comes around 13.8mm. Its tensile strength is 1000N.
Certainly, water-blocking parts keep GYTA53 operational. Jelly filling prevents damage inside core. A waterproof tape layer blocks moisture ingress. The outer sheath is waterproof PE material. Cable holds up to 48 fibers. Cable features 1mm thick armor. Bending radius measures 15D.
No, GYTA53 installation will be straightforward with guidance. Its design helps using pulling and blowing methods. Pre-installed ducts simplify the cable placement. Cable features color-coded fiber tubes. Its diameter is 8mm. Armor thickness reaches 0.15mm. The tensile test result passes at 600N.
Dekam provides GYTA53 in several custom lengths. You can request different cut-to-length options. Contact sales to determine the best size. The drums hold many kilometers lengths. Cable features sequential length markings, printed every meter. Standard reel length comes with 2km, and 4km.
