12 24 48 72 144 Cores Outdoor GYTA Fiber Optic Cable
- Excellent mechanical properties and temperature characteristics.
- The loose tube material has good hydrolysis resistance and high strength.
- Special oil-based filling provides critical protection for the fibers.
- A compact cable structure effectively prevents tube shrinkage.
- Good compression resistance and flexibility.
- PE jacket offers excellent UV and radiation resistance.
- Special oil-based filling ensures the waterproof performance of the cable.
- Coated aluminum tape enhances the cable’s moisture resistance.
What is GYTA Fiber Optic Cable

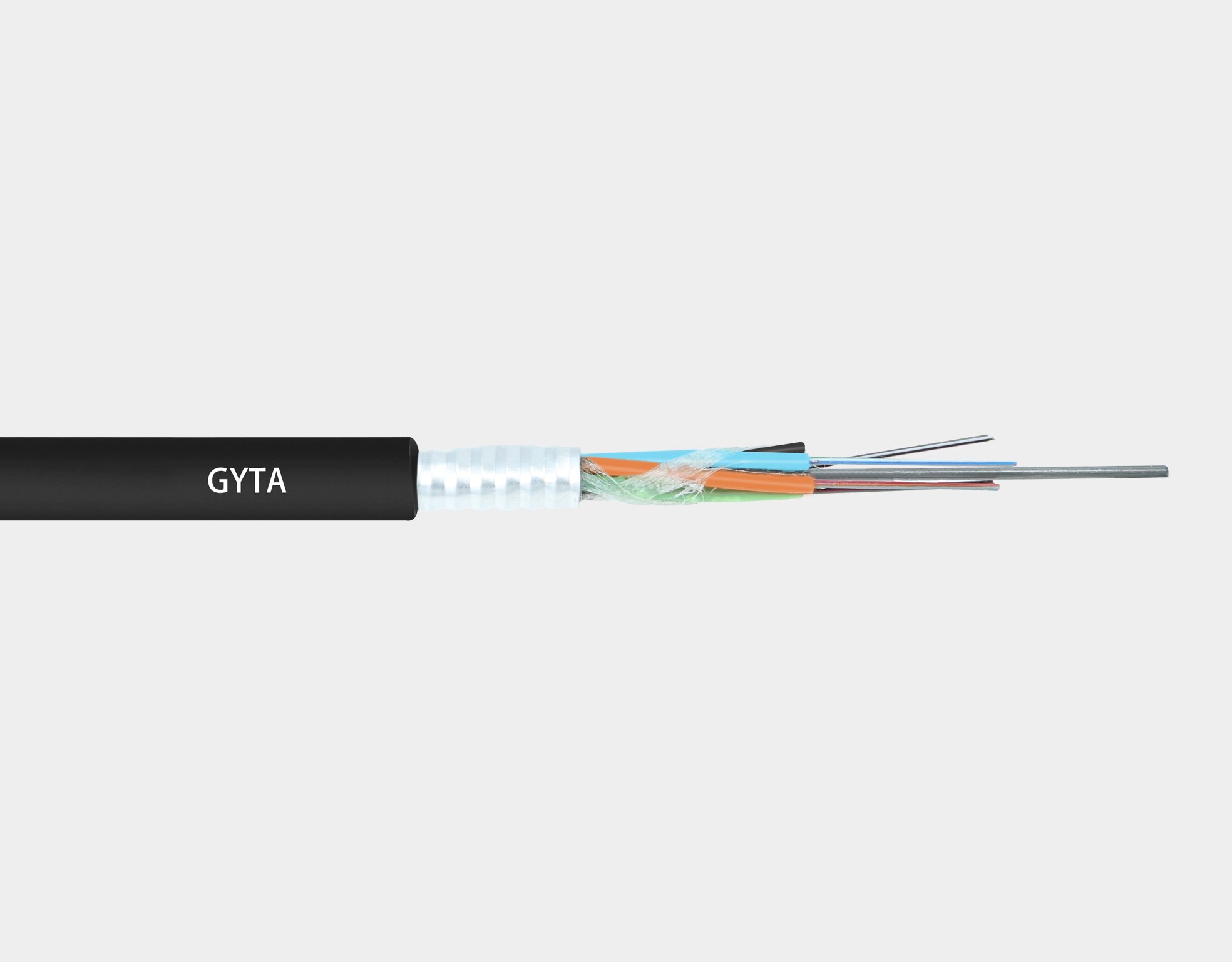

The structure of the GYTA fiber optic cable consists of 250μm fibers housed in a loose tube made of high-modulus material, with waterproof compounds filling the tube. At the center of the core is a metal strengthening element, which may have a layer of polyethylene (PE) extruded over it, depending on the design. The loose tubes (and filler ropes) are twisted around the central strengthening element to form a compact core, with water-blocking fillers filling the gaps. After wrapping with plastic-coated aluminum tape, a polyethylene sheath is extruded to complete the cable.
GYTA fiber optic cables exhibit exceptional mechanical performance and environmental adaptability, making them suitable for use in various harsh conditions. The loose tube design allows the fibers to have some freedom of movement in response to temperature changes and external forces, reducing the risk of fiber breakage. Moreover, the water-blocking filling ensures that moisture cannot spread, guaranteeing the reliability of the fibers in humid environments.
GYTA fiber optic cables are widely used in communication networks, data centers, and long-distance transmission lines, particularly in applications that demand high reliability and performance. Due to their outstanding waterproof capabilities and durability, GYTA cables perform exceptionally well in urban underground networks, coastal areas, and other environments prone to moisture, making them an ideal choice for connecting critical infrastructure.
GYTA Cable Specifications
- 規格
- 技術參數
- 光學特性
| 光纖數量 | 2 – 288 核心 |
| 光纖類型 | G652D、G657A1、G657A2 |
| 夾克材質 | PE |
| 顏色 | 黑色的 |
| 實力會員 | 玻璃鋼 |
| 長度 | 1公里、2公里、3公里、4公里、可客製化 |
| Cable Type
(Increased by 2 fibres) |
FibreCount | Tubes | Fillers | CableWeight kg/km(Ref) | 抗拉強度
Long/Short Term (N) |
Crush Resistance
Long/Short Term (N/100mm) |
Bending Radius
Static/Dynamic (mm) |
| GYTA-2-6Xn | 2-6 | 1 | 4 | 76 |
600/1500 |
300/1000 |
10D/20D |
| GYTA-8~12Xn | 8~12 | 2 | 3 | 76 | |||
| GYTA-14~18Xn | 14~18 | 3 | 2 | 76 | |||
| GYTA-20~24Xn | 20~24 | 4 | 1 | 76 | |||
| GYTA-26~30Xn | 26~30 | 5 | 0 | 76 | |||
| GYTA-32~36Xn | 32~36 | 6 | 0 | 85 | |||
| GYTA-38-48Xn | 38-48 | 4 | 1 | 90 | |||
| GYTA-50~60Xn | 50~60 | 5 | 0 | 90 | |||
| GYTA-62~72Xn | 62~72 | 6 | 0 | 113 | |||
| GYTA-74~84Xn | 74~84 | 136 | |||||
| GYTA-86~96Xn | 86~96 | 8 | 0 | 136 | |||
| GYTA-98~108Xn | 98~108 | 9 | 1 | 163 | |||
| GYTA-110~120Xn | 110~120 | 10 | 0 | 163 | |||
| GYTA-122~132Xn | 122~132 | 11 | 1 | 190 | |||
| GYTA-134~144Xn | 134~144 | 12 | 0 | 190 | |||
| GYTA-146~216Xn | 146~216 | 13-18 | 5~0 | 190 | |||
| GYTA-288Xn | 288 | 24 | 0 | 239 |
| 纖維類型 | 衰減（+20℃） | 頻寬 | Numerica
Aperture |
Cable Cut-off
Wavelength |
||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | |||
| G.652 | ≤0.36dB/公里 | ≤0.22dB/km | ≤1260nm | |||||
| G.655 | ≤0.40dB/公里 | ≤0.23dB/公里 | ≤1450nm | |||||
| 50/125微米 | <3.3dR | ≤1.2dB/公里 | ≥500MHz·公里 | ≥500MHz·公里 | 0.200±0.015NA | |||
| 62.5/125微米 | ≤3.5dB/公里 | ≤1.2dB/公里 | ≥200MHz·公里 | ≥500MHz·公里 | 0.275±0.015 NA | 一 | ||
Benefits of GYTA & GYTA53 Cable
High Strength and Durability
GYTA cables feature a robust loose tube design that withstands harsh environmental conditions, ensuring long-term reliability.
Excellent Waterproofing
The specialized oil-based filling effectively protects the fibers from water ingress, making it ideal for outdoor installations.
UV and Radiation Resistance
The PE jacket provides superior resistance to UV rays and radiation, enhancing the cable’s longevity in exposed settings.
Applications of GYTA & GYTA53 Cables
-
GYTA cables are perfect for aerial applications thanks to their durable construction, superior moisture resistance, and strong mechanical protection.
-
GYTA cables are ideal for direct burial due to their robust design, excellent moisture resistance, and high mechanical strength.
-
GYTA cables are ideal for duct applications due to their robust design, moisture resistance, and flexibility for easy installation.
Download GYTA Cable Catalog
Installation of GYTA & GYTA53 Fiber Optic Cable
When installing GYTA fiber optic cables, ensure proper bending radius to prevent damage, avoid sharp edges, and use appropriate protective measures against moisture. Additionally, maintain suitable tension to prevent stress on the fibers.
We offer you free samples of GYTA fiber optic cables for testing; you only need to cover the shipping costs. This way, you can evaluate the quality of our products before making a larger purchase. Contact us to arrange your sample today!
The service life of GYTA optical cable is typically around 30 years under normal operating conditions. With proper installation and maintenance, it can last even longer, making it a reliable choice for long-term use.
The minimum order quantity (MOQ) for GYTA fiber optic cables is 2 kilometers. This quantity is perfect for transportation and allows you to assess the quality before committing to larger orders.
The delivery time for GYTA fiber optic cables primarily depends on the order quantity. For orders under 100 kilometers, delivery is typically within 10 days. For orders exceeding 300 kilometers, the delivery timeframe extends to 20 to 30 days.
